Industrial Grid Waffle Trays for Safe Fine Pitch IC Protection

Merknaam:	Hiner-pack
Modelnummer:	HN24224
MOQ:	500 STUKS
Prijs:	$1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities）
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	2000 stks/dag

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

ROHS, ISO

Tray Weight:

Varieert, doorgaans tot 500 gram per holte

Kleur:

Zwart

Kwaliteitsborging:

Leveringsgarantie, betrouwbare kwaliteit

Omtreklijngrootte:

50,7×50,7×4 mm

Grootte van de holte:

6,45X3,16X0,85mm

Incotermen:

EXW, FOB, CIF, DDU, DDP

Schimmeltype:

Injectie

Herbruikbaar:

Trayvorm:

Rechthoekig

Schone Klasse:

Het algemene en ultrasone schoonmaken

IC-type:

BGA,QFP,QFN,LGA,PGA

Verpakkingsniveau:

Transportpakket

Kromtrekken:

Vervorming MAX 0,26 mm

Capaciteit:

6x10=60 ST

Verpakking Details:

karton, pallet

Levering vermogen:

2000 stks/dag

Productbeschrijving

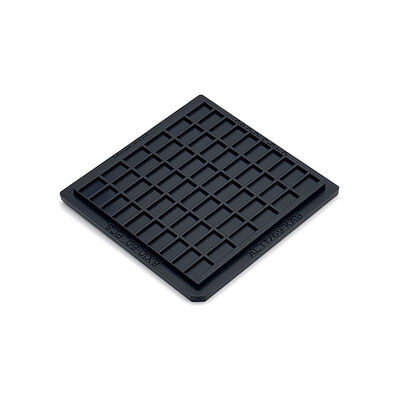

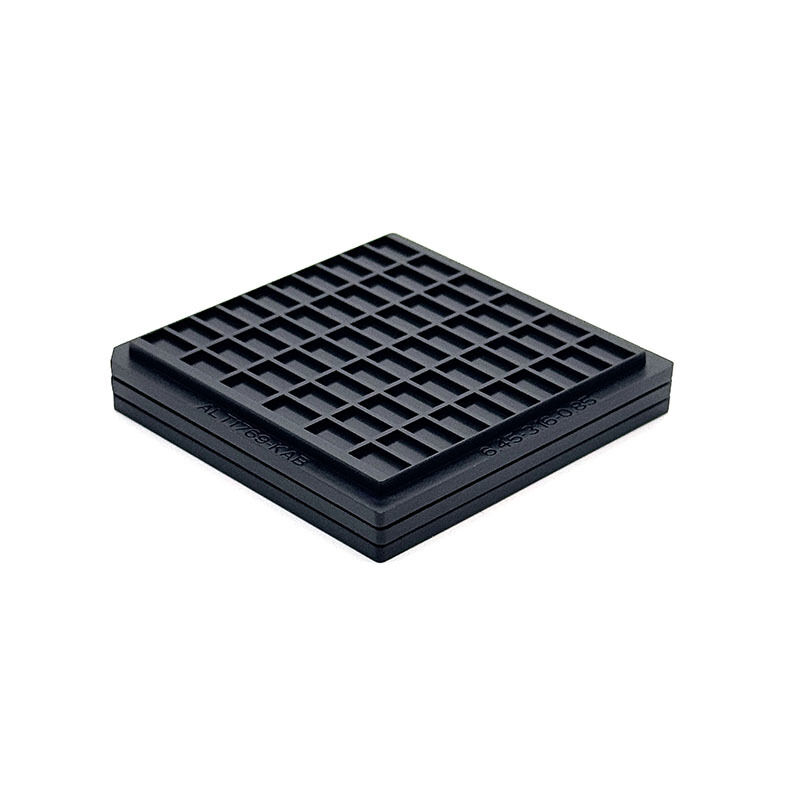

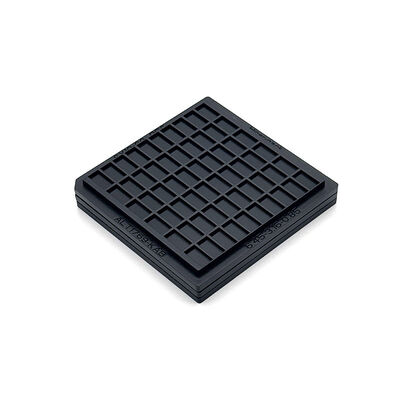

Industrial Grid Waffle Trays for Safe Fine Pitch IC Protection

Boast uniform industrial-grade grid structure to securely hold fine pitch ICs, preventing shifting and collision during handling and transportation. Built with durable materials to withstand frequent use in busy production lines, effectively reducing component damage and loss.

Deliver stable protection for sensitive electronic parts, shielding against impact and static risks. Maintain consistent performance in long-term industrial operations, supporting smooth workflow and minimizing downtime.

Support full customization of grid size, spacing and cavity depth to match diverse IC specifications. Adapt to various automated production lines and cleanroom standards, providing tailored solutions for semiconductor manufacturing needs.

Key Features/ Benefits

Reliable component protection
Durable industrial-grade material
Stable component holding
Support fully customized cavity sizes and layout designs
Precise waffle structure.

Specifications

Brand		Hiner-pack
Model		HN24224
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7×50.7×4mm
Cavity Size		6.45X3.16X0.85 mm
Matrix QTY		6x10=60 PCS
Warpage		MAX 0.26mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Suitable for fine pitch IC storage, production line transfer, component testing and packaging. Work seamlessly with automated pick-and-place systems and industrial cleanroom environments. Ideal for both temporary placement and long-term safekeeping of delicate semiconductor chips.

Widely applied in semiconductor factories, IC packaging plants, electronic assembly workshops and component warehouses. Perfect for industrial production, inter-department transportation and high-precision component storage.

Packaging & Shipping/ Services

Packed in standard anti-static cartons with shockproof inner lining to avoid surface scratches, deformation and static discharge during transit. Support neat stacking for large-batch delivery and warehouse storage.

Available for sea, air and international express shipping. Ensure products arrive in intact, ready-to-use condition for immediate industrial application and component handling.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
